Audit of RiscZero Helios

Description. In the R0VM guest program, a series of updates is applied to a light client state in order to transition it to a newer state.

To ensure that the sync committee updates originate from the correct blockchain (and fork) the genesis block and the expected fork IDs are passed to the Helios verification functions:

pub fn main() {
    let encoded_inputs = env::read_frame();

    let ProofInputs {
        // TRUNCATED...
        genesis_root,
        forks,
        // TRUNCATED...
    } = serde_cbor::from_slice(&encoded_inputs).unwrap();

    // TRUNCATED...

    // 1. Apply sync committee updates, if any
    for (index, update) in sync_committee_updates.iter().enumerate() {
        // TRUNCATED...
        let update_is_valid =
            verify_update(update, expected_current_slot, &store, genesis_root, &forks).is_ok();
        // TRUNCATED...
    }

    // 2. Apply finality update
    let finality_update_is_valid = verify_finality_update(
        &finality_update,
        expected_current_slot,
        &store,
        genesis_root,
        &forks,
    )
    .is_ok();

    // TRUNCATED...

    let proof_outputs = ProofOutputs {
        executionStateRoot: execution_state_root,
        newHeader: header,
        nextSyncCommitteeHash: next_sync_committee_hash,
        newHead: U256::from(head),
        prevHeader: prev_header,
        prevHead: U256::from(prev_head),
        syncCommitteeHash: sync_committee_hash,
        startSyncCommitteeHash: start_sync_committee_hash,
        slots: verified_slots,
    };
    env::commit_slice(&proof_outputs.abi_encode());
}

In turn, Helios will use the genesis root and the fork ID to verify that the sync committee signature is valid:

let fork_version = calculate_fork_version::<S>(forks, update.signature_slot.saturating_sub(1));
    let fork_data_root = compute_fork_data_root(fork_version, genesis_root);
    let is_valid_sig = verify_sync_committee_signature(
        &pks,
        update.attested_header.beacon(),
        &update.sync_aggregate.sync_committee_signature,
        fork_data_root,
    );

    if !is_valid_sig {
        return Err(ConsensusError::InvalidSignature.into());
    }

It is crucial for the light client to correctly identify the chain it is syncing to. Therefore, these two values must be exposed in the journal.

Recommendation. Expose these values, and enforce that they are equal to the expected values in the on-chain light client solidity implementation.

Right now the on-chain smart contract sets GENESIS_VALIDATORS_ROOT and SOURCE_CHAIN_ID at deployment and never use them later on.

Description. The initial store is completely decided by the prover, as it is passed to the guest program via private inputs. It is not completely unconstrained though, as a number of fields are exposed as public outputs and verified to be consistent with the on-chain light client.

Still, some fields that are not exposed as public outputs might pose some problems depending on how they are handled by the Helios implementation. For example, this is the case with the initial store value of the next_sync_committee field that’s not exposed as a public output. This could lead to a situation where the prover sets the next_sync_committee to an invalid value during a sync committee update.

Note that sync updates might not necessarily carry a next sync committee with them, as might be implied by its type. This is because they are first converted to GenericUpdate, and during the conversion a default value will be interpreted as field that is not set. You can see this in /ethereum/consensus-core/src/types/mod.rs in Helios:

impl<S: ConsensusSpec> From<&Update<S>> for GenericUpdate<S> {
    fn from(update: &Update<S>) -> Self {
        Self {
            attested_header: update.attested_header().clone(),
            sync_aggregate: update.sync_aggregate().clone(),
            signature_slot: *update.signature_slot(),
            next_sync_committee: default_to_none(update.next_sync_committee().clone()),
            next_sync_committee_branch: default_branch_to_none(update.next_sync_committee_branch()),
            finalized_header: default_header_to_none(update.finalized_header().clone()),
            finality_branch: default_branch_to_none(update.finality_branch()),
        }
    }
}

Recommendation. There are a few ways to address this issue besides exposing the next_sync_committee in the public output and verifying its consistency with what is on chain. Instead, one could ensure that all initial values in a light client store are set to mimic the bootstrapping process:

pub fn apply_bootstrap<S: ConsensusSpec>(
    store: &mut LightClientStore<S>,
    bootstrap: &Bootstrap<S>,
) {
    *store = LightClientStore {
        finalized_header: bootstrap.header().clone(),
        current_sync_committee: bootstrap.current_sync_committee().clone(),
        next_sync_committee: None,
        optimistic_header: bootstrap.header().clone(),
        previous_max_active_participants: 0,
        current_max_active_participants: 0,
        best_valid_update: None,
    };
}

But this could lead to issues if no update can be applied to set the next_sync_committee. Another solution could be to simply expose the entire store of the light client, while this seems like a much stronger solution this would force on-chain updaters to replicate the exact state of the light client, which might not necessarily by straightforward.

Description. The light client smart contract lacks a mechanism to recover if it becomes stuck due to a lack of updates for a specific (1 week) period of time. This is due to the following hardcoded check in the contract:

/// @notice Maximum number of time behind current timestamp for a block to be used for proving
/// @dev This is set to 1 week to prevent timing attacks where malicious validators
/// could retroactively create forks that diverge from the canonical chain. To minimize this
/// risk, we limit the maximum age of a block to 1 week.
uint256 public constant MAX_SLOT_AGE = 1 weeks;

// TRUNCATED...

function update(bytes calldata seal, bytes calldata journalData, uint256 fromHead)
    external
    onlyRole(UPDATER_ROLE)
{
    // TRUNCATED...

    // Check if the head being proved against is older than allowed.
    if (block.timestamp - slotTimestamp(fromHead) > MAX_SLOT_AGE) {
        revert PreviousHeadTooOld(fromHead);
    }

This could happen either if block production on the source chain fell below a certain threshold (e.g., no block exceeds the 2/3 majority within a day or the system lags for over a week) or if no updaters provided updates for over a week.

Recommendation. Consider the risk and the likelihood of such an event happening. If needed, implement a fallback mechanism that allows an operator/updater to restart the contract using a new trusted starting point within a weak subjectivity period.

Description. In the R0VMHelios.sol smart contract, that implements the on-chain Ethereum light client, only a privileged set of updaters can update the state of the light client.

function update(bytes calldata seal, bytes calldata journalData, uint256 fromHead)
    external
    onlyRole(UPDATER_ROLE)
{
    // TRUNCATED...
}

This set of updaters is decided at deployment time and can’t be changed afterwards. This is done using the OpenZeppelin’s AccessControlEnumerable contract and by setting an inexistant role (bytes32(0)) as administrator of the updater role:

// TRUNCATED...
struct InitParams {
    // TRUNCATED...
    address[] updaters;
}

constructor(InitParams memory params) {
    // TRUNCATED...
    if (params.updaters.length == 0) {
        revert NoUpdatersProvided();
    }

    // Make UPDATER_ROLE not have any admin roles that can manage it
    // This freezes the updater set - no role can add or remove updaters
    _setRoleAdmin(UPDATER_ROLE, bytes32(0));

    // Add all updaters
    for (uint256 i = 0; i < params.updaters.length; i++) {
        address updater = params.updaters[i];
        if (updater != address(0)) {
            _grantRole(UPDATER_ROLE, updater);
            emit UpdaterAdded(updater);
        }
    }
}

Due to this, loss of keys or compromise of updaters will negatively impact the smart contract.

Recommmendation. Best practice is to give options for updaters to be rotated.

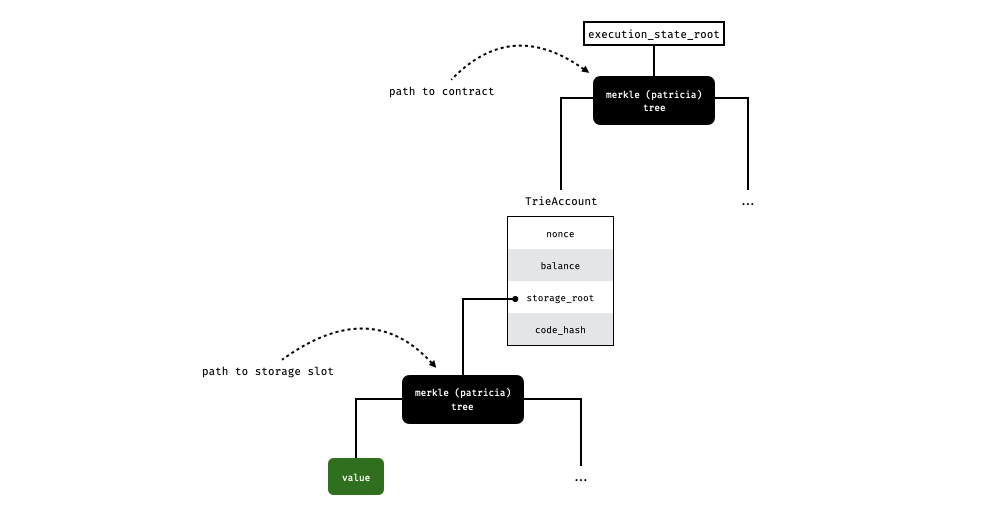

Description. As we have seen throughout this report, the on-chain light client uses RiscZero to process verified updates to its state. However these updates also come with arbitrary verified storage slot accesses. Each of these accesses is stored in a mapping (storageValues), and can be accessed via a deterministically generated access key.

The access key encodes three elements that uniquely identify the storage slot: the contract address at which the storage slot was accessed, the storage slot number, and the block number at which the access was made.

The encoding used comes from the Solidity ABI specification and packs the arguments as follows:

function computeStorageKey(uint256 blockNumber, address contractAddress, bytes32 slot)
    public
    pure
    returns (bytes32)
{
    return keccak256(abi.encodePacked(blockNumber, contractAddress, slot));
}

According to the specification says, the encoding is ambiguous:

In general, the encoding is ambiguous as soon as there are two dynamically-sized elements, because of the missing length field.

As the arguments encoded in the implementation are all fixed-length (with the address being interpreted as a uint160 type), this is not an issue. That being said it is worth noting that this can lead to issues if the types of the arguments change in the future, or if clients do not properly handle truncated arguments (as seen in the past with short-address attacks).

Description. We noticed two unusual behaviors in the way the on-chain light client was implemented. After discussion with RiscZero, it seems like these oddities are due to the original permissionless design of the contract: anyone could attempt to update the on-chain light client state. This design was later changed, and the contract we looked at was permissioned as explained in the finding Updaters Can’t Be Rotated.

Non-Sequential Updates. The contract does not enforce that updates must begin with the most recent head/header (which is stored in the head field of the smart contract state). In other words, an update may use an older state as its starting point. This approach can be inefficient and may not reflect the optimal state progression.

Redundant Event Emissions. Obsolete updates that do not actually advance the light client state can be submitted repeatedly. While these redundant updates do not compromise security, they cause the contract to emit the same events (e.g., HeadUpdate) multiple times. This behavior could confuse users, particularly if their client software does not handle out-of-order or duplicate events gracefully.

Although these behaviors do not pose security risks, they can lead to inefficiencies and potential bugs in client applications that assume events are unique and sequential.

Description. The on-chain light client is initialized using a trusted starting point (or “weak subjectivity checkpoint”) in its constructor, as shown below:

contract R0VMHelios is AccessControlEnumerable {
    constructor(InitParams memory params) {
        GENESIS_VALIDATORS_ROOT = params.genesisValidatorsRoot;
        GENESIS_TIME = params.genesisTime;
        // TRUNCATED...
        SOURCE_CHAIN_ID = params.sourceChainId;
        syncCommittees[getSyncCommitteePeriod(params.head)] = params.syncCommitteeHash;
        // TRUNCATED...
        headers[params.head] = params.header;
        executionStateRoots[params.head] = params.executionStateRoot;
        head = params.head;
        // TRUNCATED...
    }

This method is common practice to prevent long-range attacks by anchoring the light client to a known checkpoint. However, the design has two debatable issues:

Potential Disconnection Between Initialization Values. The various initial values such as the sync committee hash, header, and execution state root are not explicitly verified to be interrelated. This lack of cross-verification may result in a situation where these values do not consistently represent a single, cohesive checkpoint.

Opaque Root-of-Trust Identification. There is no clear, on-chain mechanism to indicate which checkpoint serves as the root of trust for the light client. Users must currently rely on off-chain observation, such as retrieving the first HeadUpdate event, to determine the initial root of trust. This indirect method can hinder transparency and independent verification.
